Winways UST Throw ALR 88'' Solid Panel Fresnel Screen

Key Features:

• Fully adapted to various UST projector
• 110% Ultra-wide color gamut

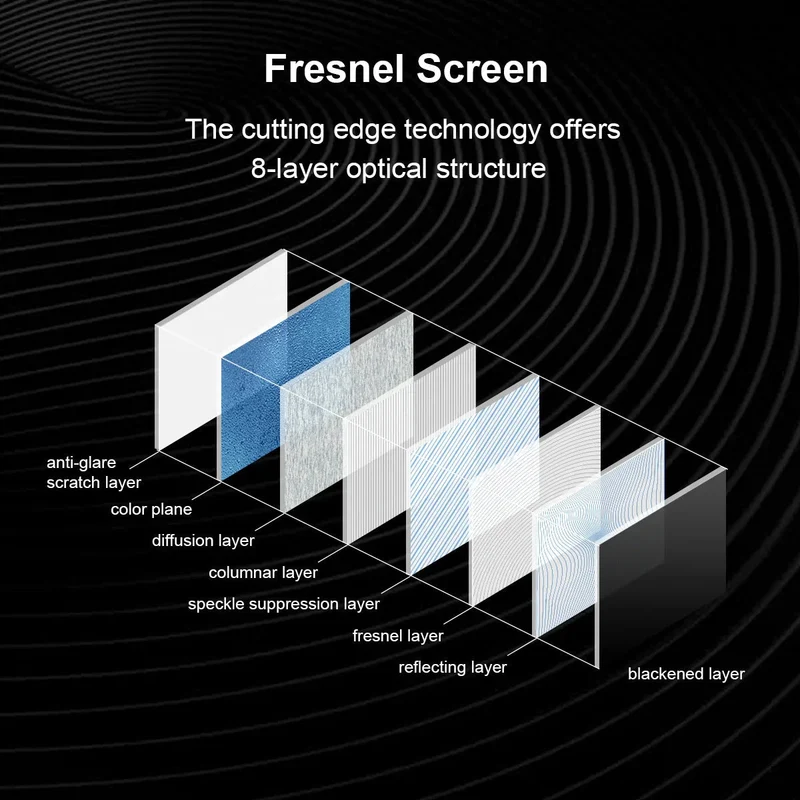

• Only 0.7mm Ultra-thin optical film but with 8 layers optical structure
• Anti-glare scratch layer
• Color plane
• Diffusion layer
• Columnar lens layer
• Speckle suppression layer

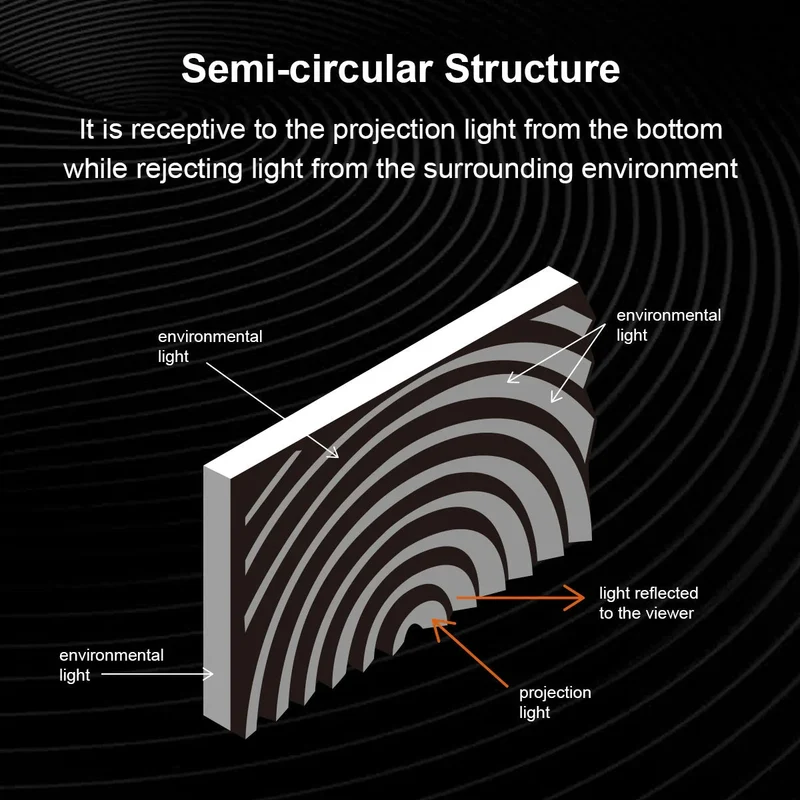

• Fresnel lens layer
• Reflecting layer
• Blackebed layer
• Support UST Projectors which throw ratio between 0.15-0.27, this screen is not suitable for long focal projectors
• Support Projector Installation Method: orthographic projection or ceiling mounted projection

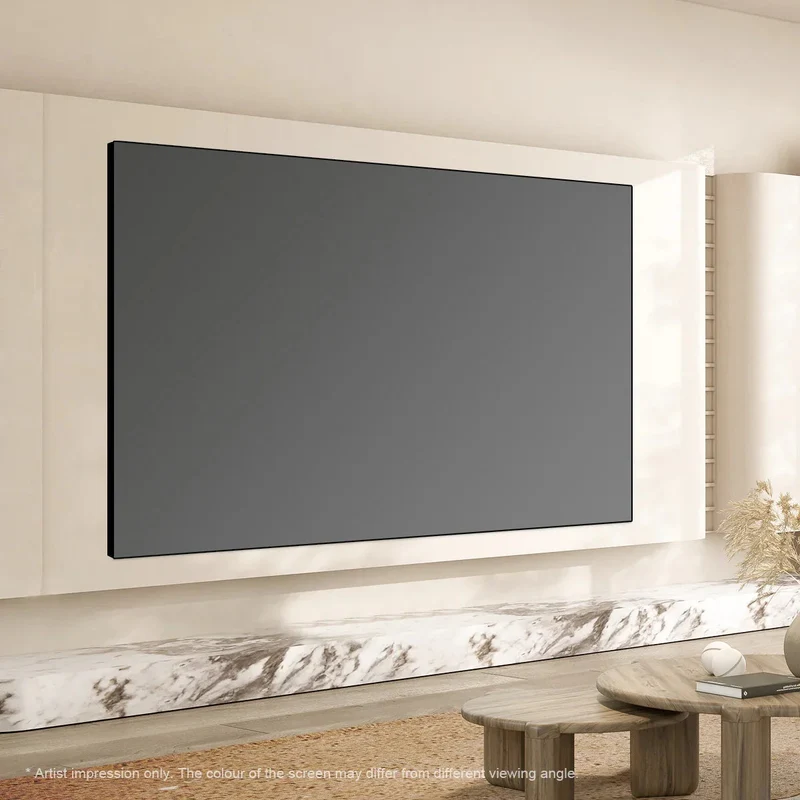

• Screen Installation Supported: Wall-mounted or Bracket fixed

Specification:

• Screen Material: Polymer Resin; Structural Aluminum Plate
• Screen Type: Integrated Hard Screen (Can't fold)
• Screen Color: Dark Grey
• Screen Frame: Metal Black Frame; Bright Silver Border

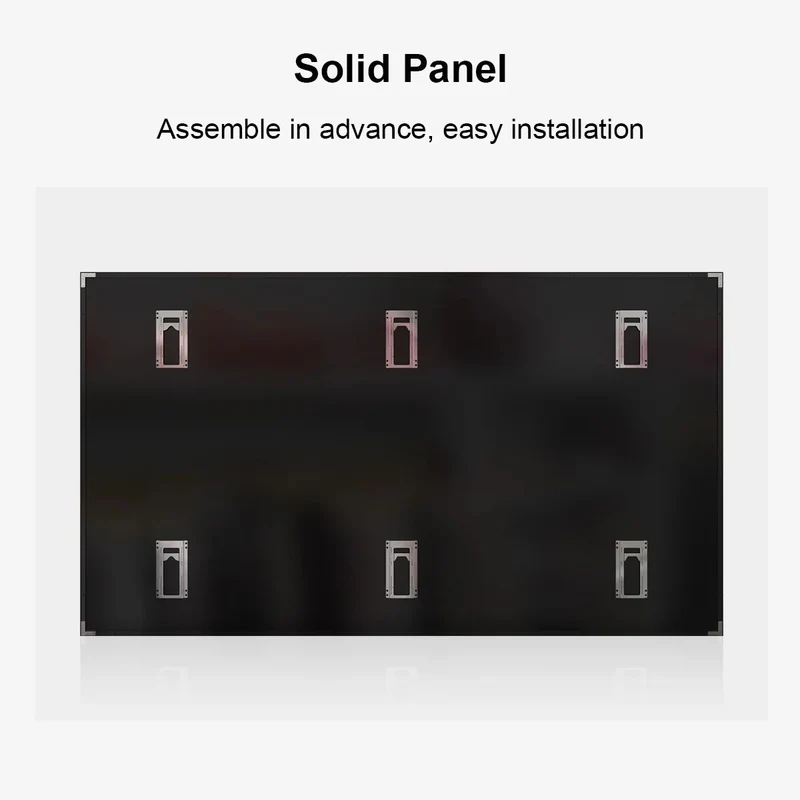

• Backboard Design: 6 Hooks
• ALR Rate ≥85%
• Peak Gain ≥1.6
• Viewing Angle: 120°±5°
• Product Warranty: 1 Year

Size	Display Size(mm)	Installation Size(mm)	Packing Box Dimension(mm)	Net Weight(kg)	Gross Weight(kg)
90''	1993x1122	2015x1144x15	2185x1315x75	18	38
