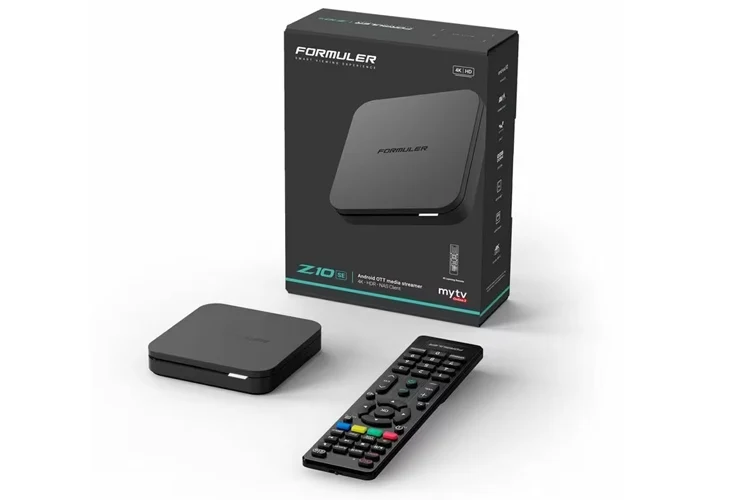

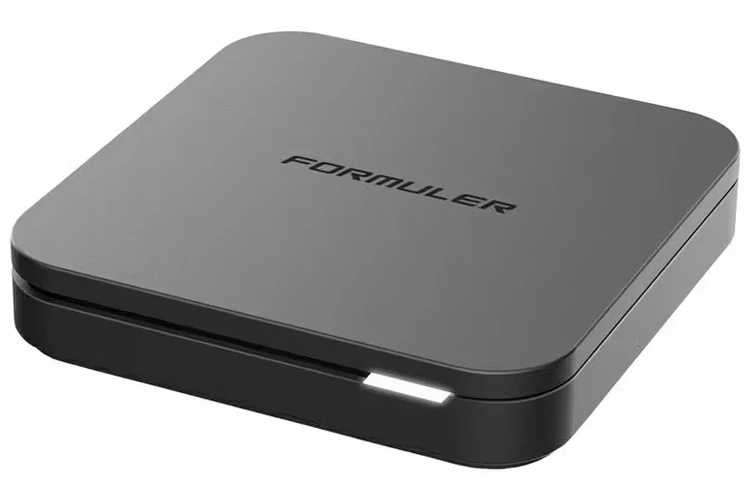

Formuler Z10 SE 4K Android Media Streamer

4K Android OTT media streamer - 4K | HDR | NAS Client

Features:

• High-Definition Output: Supports 4K resolution (3840 x 2160) for clear and detailed visuals.
• Efficient Performance:
  • Processor: RealTek RTD1319 CPU
  • Graphics: ARM G31 MP2 GPU
  • Memory & Storage: 2GB DDR4 RAM and 4GB eMMC storage
• Operating System: Runs on Android 10, providing access to a wide range of applications and services.
• Networking:
  • Wireless: 2.4G single-band Wi-Fi for basic wireless connectivity
  • Ethernet: 100M Ethernet port for stable wired connections
• Advanced Decoding:
  • Video: 4K at 60fps, supports AV1, H.265(HEVC), AVS, H.264(AVC, MVC), Real, MPEG1/2/4, and VC-1.
  • Audio: MPEG-1 Layer 1,2,3(2-CH), MPEG-2 Layer 1,2, and HE AAC V1/V2.
• Digital Rights Management: Implements Widevine Level 1 and Level 3 DRM for secure content playback.
• Compact Design:
  • Dimensions: 88mm x 88mm x 17mm
  • Color: Black
• Connectivity Ports:
  • USB: One USB 2.0 port
  • HDMI: One HDMI port
  • LAN: One LAN port
• Power Specifications:
  • Power Input: 12VDC / 1A
  • Power Consumption: Max. 12W
  • Standby Power: Ultra-low 0.5W

Formuler Z10 SE: SpecificationsOutput Resolution

• Resolution: 4K (3840 x 2160)

Hardware

• CPU: RealTek RTD1319
• GPU: ARM G31 MP2
• RAM: 2GB DDR4 @2400MHz
• Storage: 4GB eMMC
• Operating System: Android 10

Networking

• Wireless: 2.4G 1T1R
• Ethernet: 100M

Decoder

• Video Decoder: 4K@60fps, AV1, H.265 (HEVC), AVS, H.264 (AVC, MVC), Real, MPEG1/2/4, VC-1
• Audio Decoder: MPEG-1 Layer 1,2,3(2-CH), MPEG-2 Layer 1,2, HE AAC V1/V2
• Support Language: Global
• DRM: Widevine L1, L3

Dimensions

• Length: 88mm
• Width: 88mm
• Thickness: 17mm
• Color: Black

Ports

• Power Input: 1
• USB 2.0: 1
• HDMI: 1
• LAN: 1

Power Input

• Power Rating: 12VDC / 1A
• Power Consumption: Max. 12W
• Standby Power: Max. 0.5W (Ultra low power)

Optional USB TunersATSC USB Tuners:

• Hauppauge WinTV-HVR-955Q (2040:b123)
• Hauppauge WinTV-HVR-955Q (2040:b150)
• Hauppauge WinTV-dualHD (2040:026d)

DVB-T USB Tuners:

• Hauppauge WinTV-dualHD (2040:8265)
• Geniatech MyGica T230 Black (0572:689A)
• Geniatech OEM T230 White (0572:c68a)
• Xbox One Digital TV Tuner (045E:02D5)

* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
